HYBRID SPHERE CNC LATHE
MC 2200BL
HYBRID SPHERE CNC LATHE ―MC2200BL
◎ One machine improves surface roughness and roundness and reduces processing time.
◎ The X and Z axes adopt linear slide rails to provide high precision and stability.
◎ Spindle collet is stable and durable for precise machining.
◎ Special rotation axis design enables true roundness to ±5μm.
◎ Chip-free rolling process, no processing waste generated
☆ More app categories (Click here)

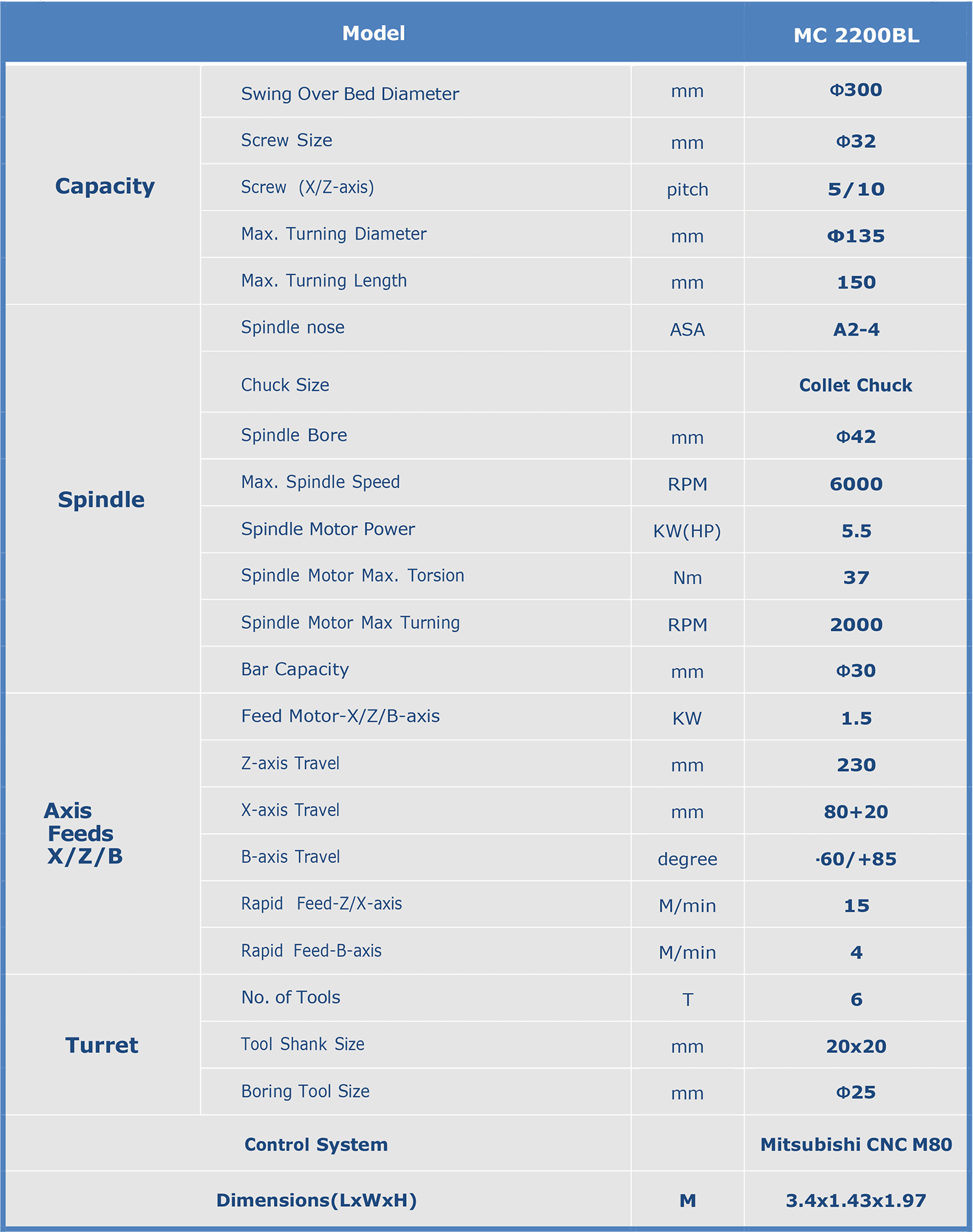

Chart Description
◇Price remains unchanged, upgrade to servo turret
▲Same price, different experience
▲Fast + Stable + Accurate
▲High torque output, low noise.
▲Fast tool change without tool change error.
◇Full enclosure exterior
▲Spacious working space design provides the best turning environment and excellent chip removal effect
▲Fully sealed design ensures safe operation and clean working environment
▲The viewing window of the working door is made of safety tempered glass, which can clearly check the processing status at the same time.
▲Removable rear cover facilitates chip removal.
◇Humanized operation panel
▲Ergonomic and easy to operate
▲The operation box can be rotated to 90 degrees, and tools such as turning tools can be placed in the space below.
◇Automatic lubrication system
▲The over temperature/load protector is attached to protect the motor.
▲The function of fixed pressure for the pressure relief valve can prolong the system life
▲Equipped with a pressure switch, when the oil level is too low, an alarm prompt will pop up on the screen
▲The indicator on the panel can display the operation of the lubricator.
Rolling process
▲What is rolling ?
★Rolling is a pressure finishing process that utilizes the cold plasticity characteristics of metal at room temperature and strengthens the surface of the rolling tool and the workpiece to obtain a smooth, mirror-like metal surface.
The main goal of roller polishing is to give the workpiece an ultra-high quality smooth surface or to meet high surface accuracy requirements; while the roller polishing tool uses one or more rollers or balls to exert pressure to plasticize and deform the surface of the workpiece.

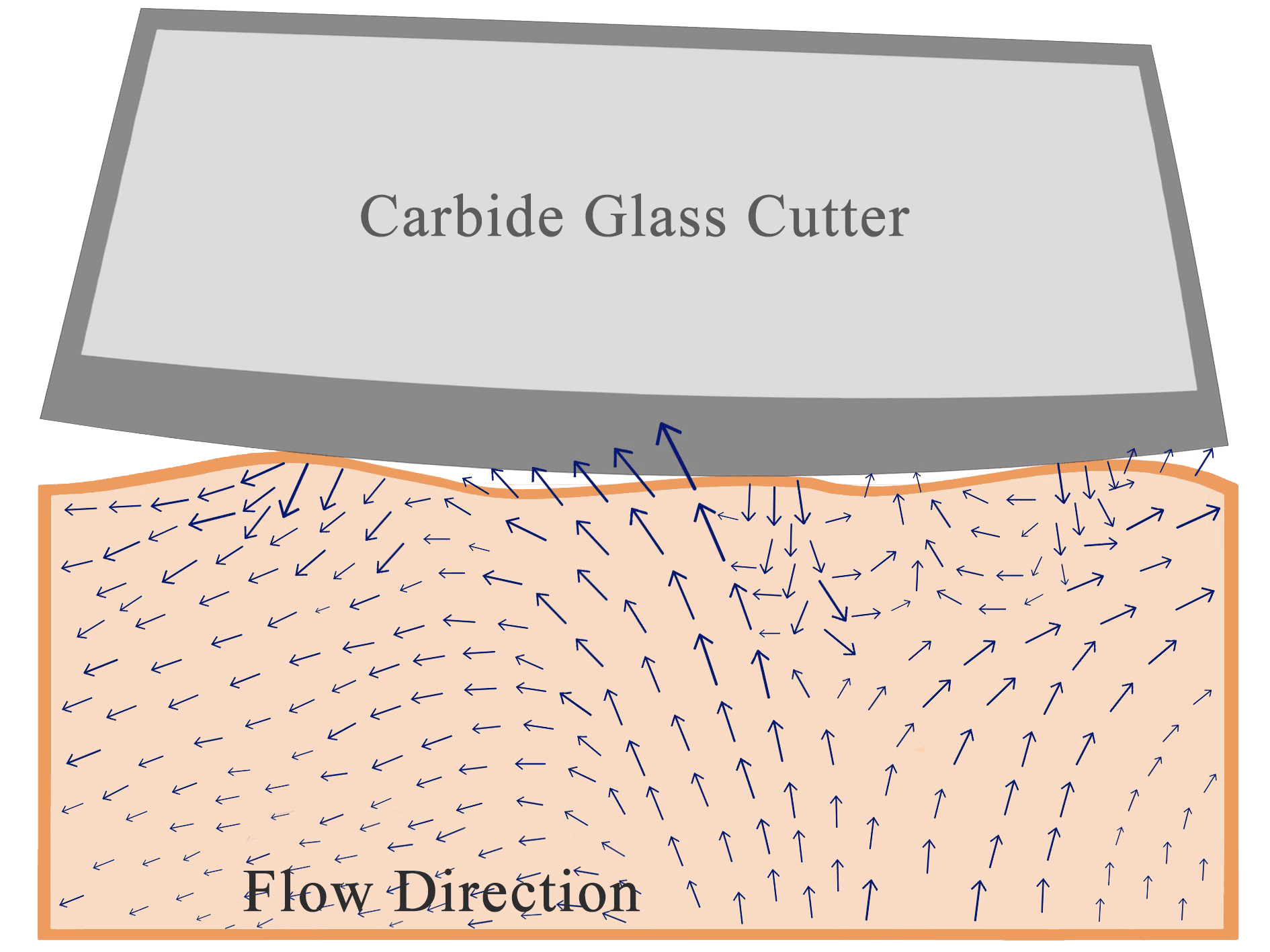

▲The principle of roller polishing knife
★"At the contact point between the roller burnisher and the workpiece, the force of the roller burnisher will process the surface area of the material by extrusion and roller burnishing; if the stress is higher than the yield strength of the material, the material close to the surface of the workpiece will begin to flow and produce plasticity. Deformation.
The convex peaks on the originally uneven surface will be pressed vertically into the surface, and then filled into the original remaining low concave troughs; thereby reducing the surface roughness of the workpiece and achieving the effect of rolling and extruding.
This processing method can not only improve the surface finish in a short time, but also improve the hardness and mechanical properties of the workpiece. It also greatly improves the wear resistance and corrosion resistance; and due to the generation of compressive residual stress, it can achieve durability surface effect.
Standard Accessories
Optional Accessories
