SLANT BED CNC LATHE
MC 8500H/L
SLANT BED CNC LATHE ―MC8500H/L
◎ 45° integrated slant-back bed structure enhances rigidity and enables high-efficiency chip removal.
◎ Ball linear slides have high rigidity and high load capacity.
◎ Equipped with hydraulic/servo turret.
◎ The stroke is stable and fast, improving processing efficiency.
◎ Can be used with automation equipment and feeders.

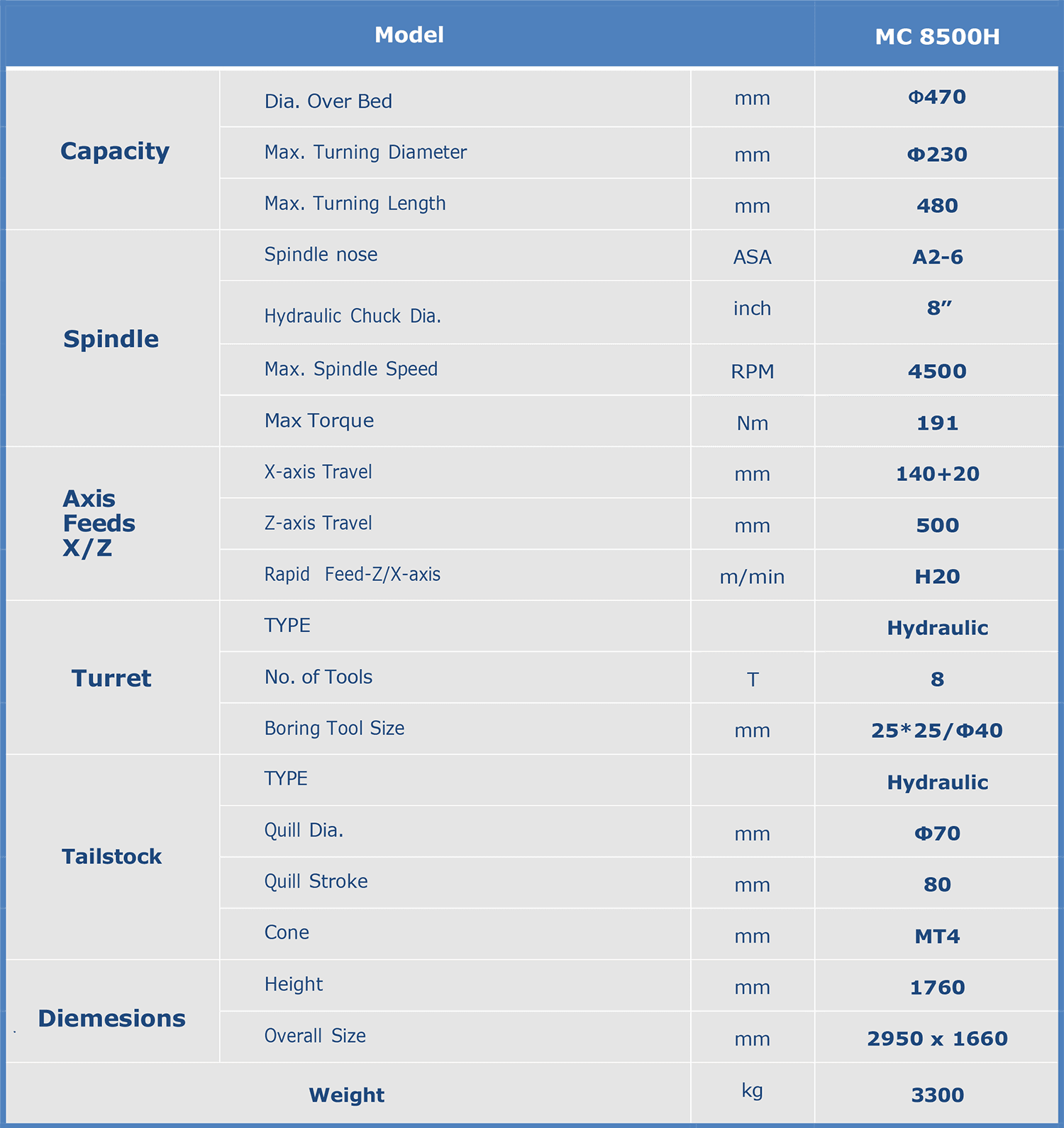

Chart Description
◇45° integrated slant-back bed structure
▲ 45-degree inclined bed design can reduce the floor space and improve usage efficiency
▲ Ergonomically designed for easy loading and unloading of workpieces
▲ Operations such as loading and unloading, and knife calibration are more convenient
▲ The one-piece bed base is used to strengthen the structure and enhance shock resistance, making it suitable for high-precision and high-hardness turning operations.
▲ Combined with reinforced special ribs, it exhibits unique dynamic stability during high-speed cutting.
★ MC 8500H BOX WAYS - resistant to heavy cutting
★ MC 8500L LINEAR GUIDE WAYS - Designed for fast processing
◇High-Precision A2-6 Spindle
▲The spindle is supported by P4 class precision angular ball bearings with superior radial and axial capacity.
▲Generating twice the torque output of standard motors, the A/C, constant output, wide-range Fanuc βP22 high-torque series motor is rated at 15kw (30 min). This double bind motor is designed to reach full output at 1/2 the RPM of standard motors, providing the ability to take heavier cuts in the lower RPM ranges.
▲The Ø100 bearing size ensures optimal stability and precision.
▲Equipped with efficient grease lubrication, our spindles ensure smooth and reliable operation, minimizing friction and wear for extended spindle life.
◇High precision ball linear guide/screw
▲This machine adopts C3 grade precision screw, which is pre-stretched and combined with pre-pressed double nuts.
▲High Rigidity, Four-way Equal Load
▲Self-alignment Capability
▲Smooth Movement with Low Noise
▲Interchangeability
◇Tailstock (optional)
▲Body with high rigidity and high load capacity.
▲Quill thrust is adjustable.
◇Parts Catcher (optional)
▲For various types of workpiece: disc, long or short-bar, casting....
▲Workpiece feeding automation, Operators have no need on standby for refill workpiece.
▲Customization can be provided according to customer needs.
Standard accessories
Optional accessories
