HYBRID SPHERE CNC LATHE
MC 4200BL

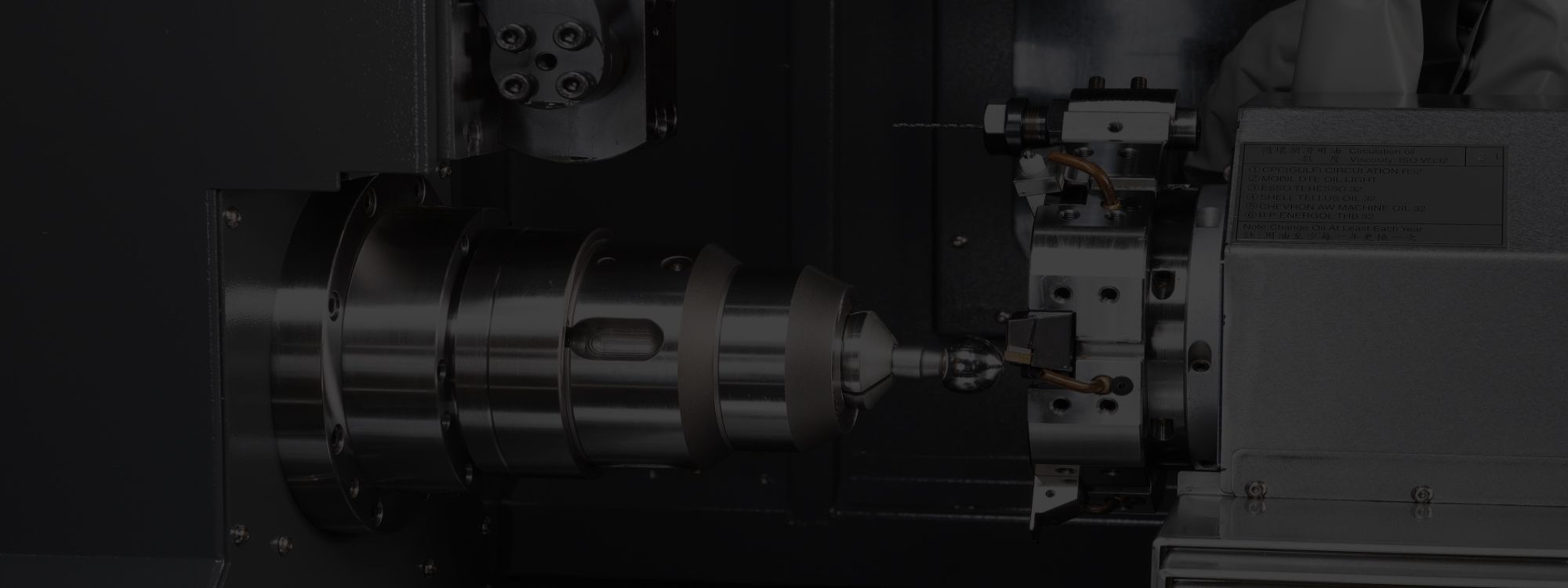

HYBRID SPHERE CNC LATHE ―MC4200BL
◎ Three-axis with turning and rolling/burnishing processes, all in one machine.
◎ The X and Z axes adopt linear slide ways to provide high precision and stability.
◎ Special rotation axis design enables true roundness to ±5μm.
◎ Chip-free rolling process, no processing waste generated.
◎ Improve production efficiency with automation.
☆ More app categories (Click here)

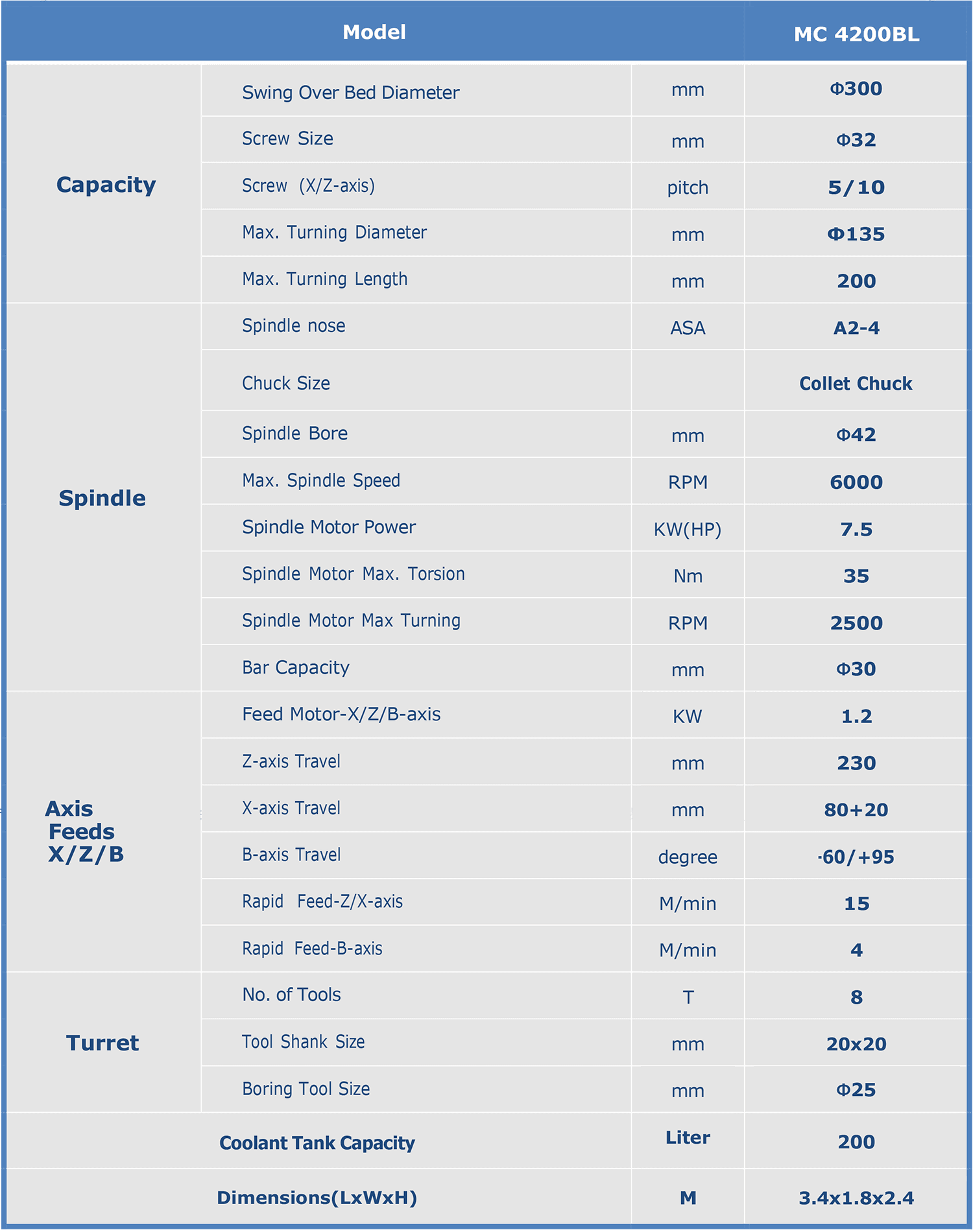

Chart Description
◇Meehanite Cast Iron
▲All main structures are made of high-grade Meehanite cast iron and are tempered and stress-relieved to ensure long-term stability.
▲Combined with reinforced special ribs, it exhibits unique dynamic stability during high-speed cutting.
◇High Precision Full Roller Linear Guideway & Ball Screw
▲Ultra Heavy Load.
▲The Optimization Design of Four Directional Load.
▲Ultra High Rigidity.
◇High-Precision A2-4 Spindle
▲The spindle is supported by P4 class precision angular ball bearings with superior radial and axial capacity.
▲The Ø70 bearing size ensures optimal stability and precision.
▲Spindles offer a maximum speed of 6,000 rpm, enabling high-speed machining while maintaining precision and efficiency.
▲Equipped with efficient grease lubrication, our spindles ensure smooth and reliable operation, minimizing friction and wear for extended spindle life.
◇Movable Coolant Tank
▲There are rollers at the bottom of the cutting water tank, which can be pulled out from the side for easy cleaning and maintenance.
▲Add a filter to filter iron filings and other foreign matter to avoid damage to the pump.
▲The multi-functional water tank can be equipped with 2 cutting water pumps and oil-water separator.
Rolling Process
▲What is rolling ?
★Rolling is a pressure finishing process that utilizes the cold plasticity characteristics of metal at room temperature and strengthens the surface of the rolling tool and the workpiece to obtain a smooth, mirror-like metal surface.
The main goal of roller polishing is to give the workpiece an ultra-high quality smooth surface or to meet high surface accuracy requirements; while the roller polishing tool uses one or more rollers or balls to exert pressure to plasticize and deform the surface of the workpiece.
▲The principle of roller polishing knife
★"At the contact point between the roller burnisher and the workpiece, the force of the roller burnisher will process the surface area of the material by extrusion and roller burnishing; if the stress is higher than the yield strength of the material, the material close to the surface of the workpiece will begin to flow and produce plasticity deformation.
The convex peaks on the originally uneven surface will be pressed vertically into the surface, and then filled into the original remaining low concave troughs; thereby reducing the surface roughness of the workpiece and achieving the effect of rolling and extruding.
This processing method can not only improve the surface finish in a short time, but also improve the hardness and mechanical properties of the workpiece. It also greatly improves the wear resistance and corrosion resistance; and due to the generation of compressive residual stress, it can achieve durability surface effect.
